Audio Transformer

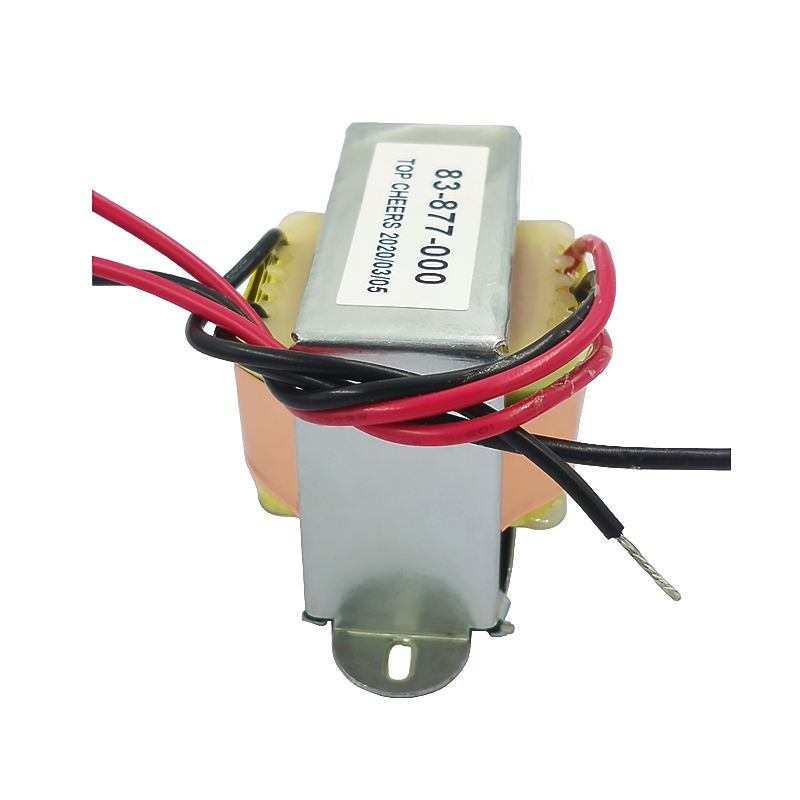

GEZ audio output line transformer manufacturers

Place of Origin:
Guangdong, China
Brand Name:
GEZ
Model Number:
EI
Usage:
AUDIO
Phase:
Single
Coil Structure:
TOROIDAL
Coil Number:
AUTOTRANSFORMER
Color:
Silver
Certification:
ISO9001:2008,CE,CQC
Type:
Dry-type
Material:
100% Copper
Cooling Method:
Natural Air Cooling
Transformer type:
Low Frenquecy Transformer
Input Voltage:
100/110/115/120/200/220/240V
Warranty:
3 Years
Output Voltage:
Customer‘s Requirement
Product name:
Single Phase Dry-Type Transformer
      Transformer Series
    No. Model Rated output voltage(Vd.c.) Output current            (mA)  Power             (VA)
    1 EI-28 series 1.0V-36.0VAC 2mA-200mA 0.2VA-2.0VA
    2 EI-35 series 1.0V-36.0VAC 2mA-500mA 0.5VA-4.0VA
    3 EI-41 series 1.0V-36.0VAC 50 mA -1000mA 1.0VA-8.0VA
    4 EI-48 series 1.0V-36.0VAC 50mA -2000mA 6.0VA-20.0VA
    5 EI-57 series 1.0V-36.0VAC 50 mA -4000mA 10.VA-30.0VA
    6 EI-66 series 1.0V-36.0VAC 50 mA -4500mA 20.VA-50.0VA
    7 EI-76 series 1.0V-36.0VAC 50 mA -5000mA 30.0VA-50.0VA
    8 EI-86 series 1.0V-36.0VAC 50mA -6000mA 50.VA-120.0VA
    9 EI-96 series 1.0V-36.0VAC 50mA -7000mA 80.VA-150.0VA
    10 EI-105 series 1.0V-36.0VAC 50mA -7500mA 100.VA-180.0VA
    11 EI-114 series 1.0V-36.0VAC 50mA -8000mA 150.VA-300.0VA
    Note: in accordance with the requirements of customers can design
    EI single phase isolation transformer type list
    NO. Power(VA) Core size(mm) Dimensions(mm)
    1 200VA 96X60 96*115*112
    2 250VA 114X50 114*105*125
    3 300VA 114X60 114*112*125
    4 400VA 133X52 133.2*105*142
    5 500VA 133X60 133.2*112*142
    6 600VA 133X65 133.2*117*142
    7 700VA 133X70 133.2*125*142
    8 800VA 152X65 153*125*160
    9 1KVA 152X80 153*140*160
    10 1.5KVA 164X70 192*165*190
    11 2KVA 164X80 192*175*190
    12 2.5KVA 164X90 192*185*190
    13 3KVA 176X85 228*205*220
    14 4KVA 176X100 228*220*220
    15 4.5KVA 176X105 228*225*220
    16 5KVA 176X110 228*230*220
    17 6KVA 180X120 240*250*250
    18 7KVA 180X140 240*270*250
    19 8KVA 190X110 270*240*275
    20 9KVA 190X125 270*250*275
    21 10KVA 200X105 300*240*300

    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
